Set defect criteria
Adjust the defect calibration variables to define lump and neckdown thresholds.
MeasureOD® FlawDetect
Lump and neckdown detection for wire and tubing
Measure outside diameter and detect and count local increases and decreases in diameter during the same inspection.
$1,995 USD · One-time software license and RTA-621 DAQ box
Inspection workflow
Configure, measure and review
FlawDetect connects directly to the Keyence LS-9501P and automatically programs it for the measurement function.
Count both flaw types
Track lumps and neckdowns separately while measuring outside diameter.
Review the process

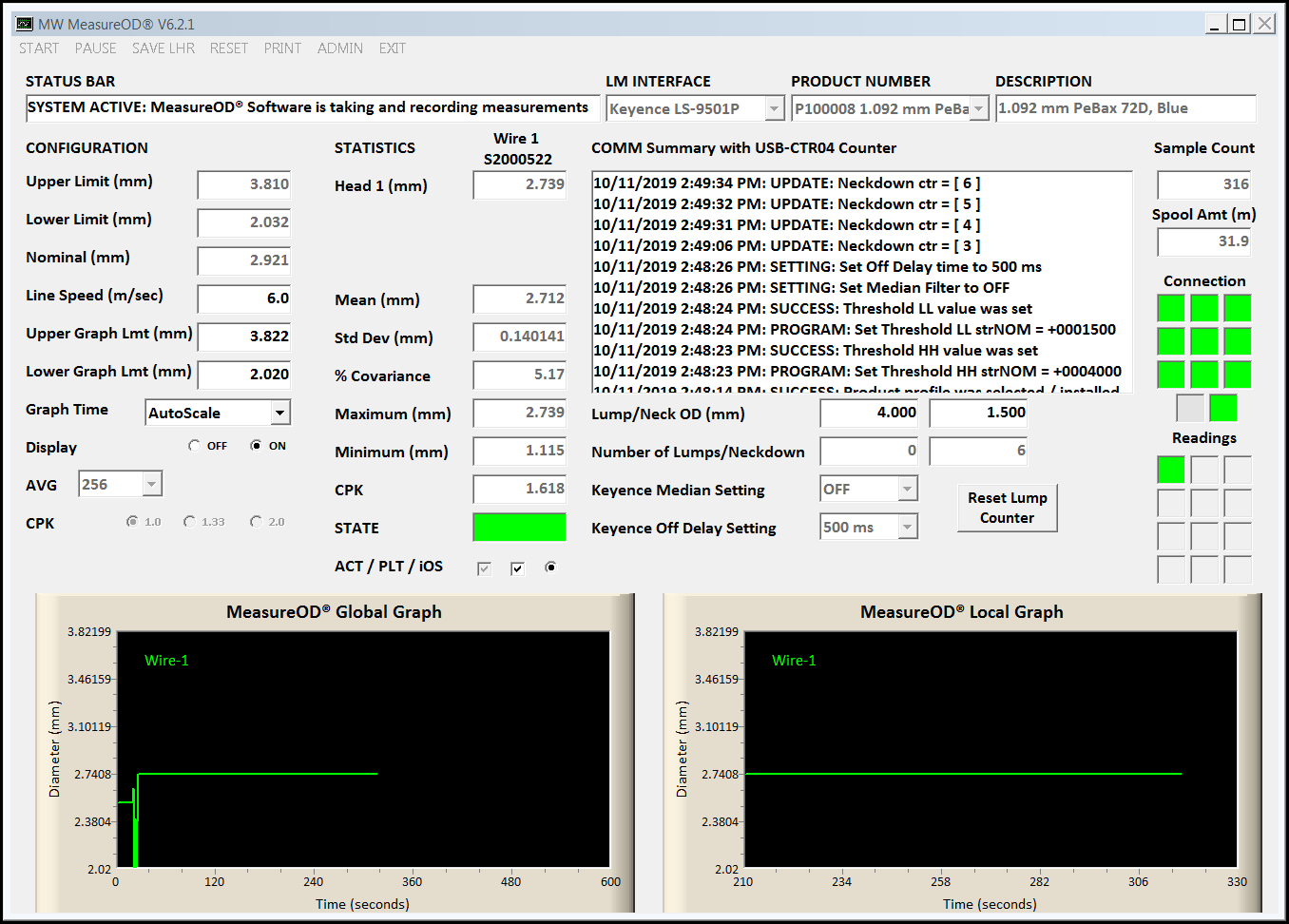

See global and local time-domain graphs and real-time statistics.
Export to Excel
Create ready-to-print reports and work in U.S. customary or metric units.
Detection example
Approx. 0.25 in at 1,500 ft/minThis example corresponds to about 457 m/min. Detectable defect length depends on line speed, hardware and settings. At lower speeds, shorter defects can be detected.
Equipment
Built for Keyence LS-9000 Series optics
Pair the required LS-9501P controller with a compatible LS-9XXX optical micrometer selected for your product diameter.
Explore Keyence hardwareExcel reporting
Review the results of each run
The Excel report includes a diameter plot by measured length, specification limits, inspection statistics, an overall pass/fail result, and separate counts for lumps and neckdowns.
The sample shown here recorded 4 lumps and 0 neckdowns.
Application review
Have a line or hardware question?
Share your material, diameter, line speed and any physical marking requirements.
