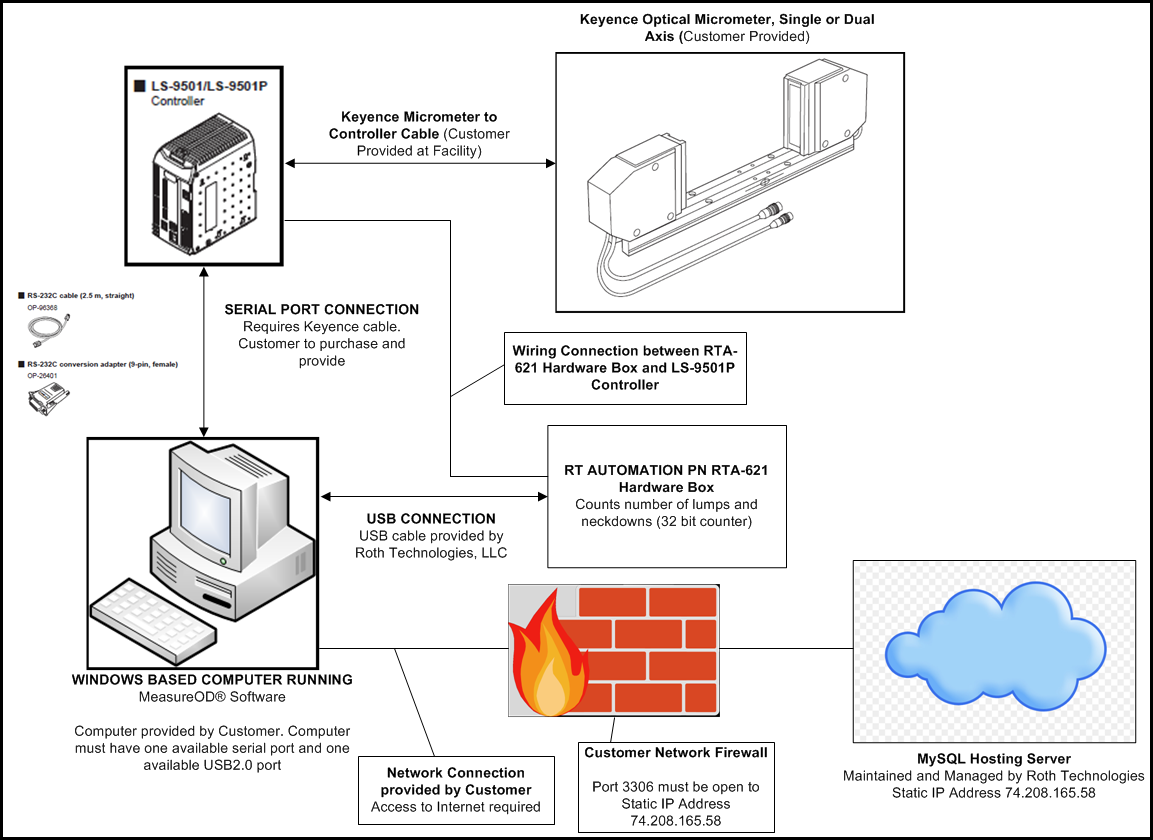

The following schematic illustrates the connection between all the applicable required equipment. Our RTA PN RTA-621 Hardware box includes a high-speed counter(s) that has a 1 MHz bandwidth.
MeasureOD® Hardware Connection Summary
CONNECTION
MeasureOD®
Including Lump and Neckdown Detection
